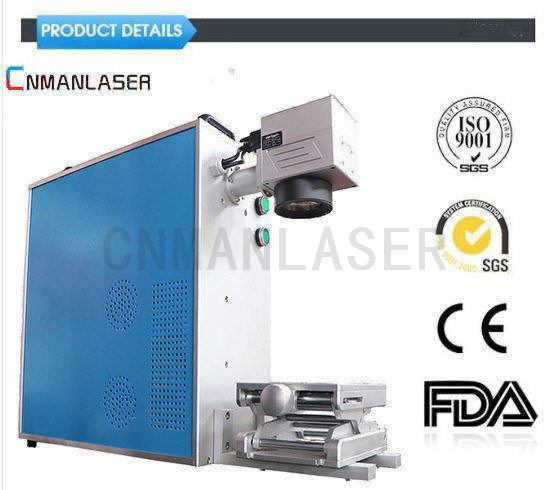

MNA-30w
CNMANLASER
1. Able to mark all metal materials and some non-metallic materials.
2. Uses Germany IPG Fiber Laser Source. The Complete enclosed laser module design with the optical fiber transmission pump light source and air cooling system, which offers dust-free protection to the laser system. This greatly reduces the failure rate and results in stable laser output. It also provide a trouble and maintanence free laser system with a life span of 50, 000 hours for the laser system.
3. Able to mark a minimum line width of 0.02mm, minimum height of 0.2mm for English characters and depth of up to 1mm.
4. The MAN-30 is currently the best choice for industries seeking deep and fine marking at a fast speed.
5. Ergonomically designed. Can be placed on desktop, taking up a small working space. Low power consumption of 800W. Highly recommended for factories and retail space.
6. Low power consumption of 800W. Highly recommended for factories and retail space.
7. WINDOWS based marking software. Able to read CORELDRAW, AUTOCAD, PHOTOSHOP and other commonly used graphic files, such as AI, PLT, DXF, BMP, JPEG. Support for auto-coding, serial number, batch number, date, bar code and two-dimensional codes.
8. Able to mark 360° Circular objects such as finger rings, bracelets and other cylindrical objects with the included rotating device.
1.Germany Made Fiber Laser Sources>> A Wide Selectivity of Operating Wavelengths, Ultra-Low Amplitude Noise, High Stability and Ultra-Long Lifetime
2. Digital Galvanometer Laser Scanning Head with Fast Marking Speed>>Fast Response Ability <0.7ms, High Speed Marking and High Precision.
3. Focus Mirror>> Singapore famous "Wavelength" brand, Fast speed, high transparent rate
4. Control System>> EZ-CAD control system with stable performance and high reliability. More than 10,000 sets of equipment are using EZ-CAD control card, shield-utilizing parts of complex functions, ensuring higher stability.
5. Red Light Pointer>>Adopt red light pointer to show the laser path since laser beam is in-visible.
6. 3D Working Table>> Made up by Precision Alloy and Imported Precise Beeline Device, can be lifting and shifting from left to right. Easy to adjust the laser focus distance.
7. Laser Power Supply>> Adopt Taiwan Famous brand, Stable performance, long life span.
8. Portable Handle>>Easy to held the machine by hand.
9. Emergency Stop>> Press it when meets error, the machine will stop working immediately to avoid losses.
10. Key Switch>> Using key swith to control the power of the machine.
11. Main Switch>> It is designed as a easy button, safe and efficient.
| Model | MAN-F10/20/30/50 |
| Laser power | 10W/20W/30W/50W |
| Laser Wavelength | 1064±10nm |
| Q-frequency | 20KHz~100KHz |
| Divergence | 0.3mard |
| Marking range | 110*110mm/150*150mm/200*200mm/300*300mm |
| Minimum line width | 0.01mm |
| Minimum character | 0.1mm |
| Marking speed | 7000mm/s |
| Marking depth | 0 ~1mm |
| Engraving line speed | ≤7000mm/s |
| Repeatability accuracy | ±0.001mm |
| Beam quality | M2:1.2~1.8 |
| Marking Format | Graphics, text, bar codes, two-dimensional code, automatically marking the date, batch number, serial number,frequency,etc. |
| Graphic format supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
| working voltage | 220V±10%/50Hz/4A |
| Unit power | 0.5kw |
| Working environment | Clean and dust free or dust less |
| Working (Humidity) | 5%-75%,free of condensed water |
| Laser module life | 100000 hours |
| Net weight | 35kg |
| Warranty | 36 months |
It is widely used in industrial: bearings, gears, and a variety of automotive parts, hardware and tools, aerospace components, integrated circuit chips, computer accessories, watches, electronics and communications products.Home appliances, wire and cable, food packaging, jewelery, tobacco.
Jewelry, adornments, rings, necklace, bracelet and many other areas of graphics and text markup.
Components of automobiles and motorcycle, packaging of goods, drink and cigarette, Nameplate and etc.
1. Able to mark all metal materials and some non-metallic materials.
2. Uses Germany IPG Fiber Laser Source. The Complete enclosed laser module design with the optical fiber transmission pump light source and air cooling system, which offers dust-free protection to the laser system. This greatly reduces the failure rate and results in stable laser output. It also provide a trouble and maintanence free laser system with a life span of 50, 000 hours for the laser system.
3. Able to mark a minimum line width of 0.02mm, minimum height of 0.2mm for English characters and depth of up to 1mm.
4. The MAN-30 is currently the best choice for industries seeking deep and fine marking at a fast speed.
5. Ergonomically designed. Can be placed on desktop, taking up a small working space. Low power consumption of 800W. Highly recommended for factories and retail space.
6. Low power consumption of 800W. Highly recommended for factories and retail space.
7. WINDOWS based marking software. Able to read CORELDRAW, AUTOCAD, PHOTOSHOP and other commonly used graphic files, such as AI, PLT, DXF, BMP, JPEG. Support for auto-coding, serial number, batch number, date, bar code and two-dimensional codes.
8. Able to mark 360° Circular objects such as finger rings, bracelets and other cylindrical objects with the included rotating device.
1.Germany Made Fiber Laser Sources>> A Wide Selectivity of Operating Wavelengths, Ultra-Low Amplitude Noise, High Stability and Ultra-Long Lifetime
2. Digital Galvanometer Laser Scanning Head with Fast Marking Speed>>Fast Response Ability <0.7ms, High Speed Marking and High Precision.
3. Focus Mirror>> Singapore famous "Wavelength" brand, Fast speed, high transparent rate
4. Control System>> EZ-CAD control system with stable performance and high reliability. More than 10,000 sets of equipment are using EZ-CAD control card, shield-utilizing parts of complex functions, ensuring higher stability.
5. Red Light Pointer>>Adopt red light pointer to show the laser path since laser beam is in-visible.
6. 3D Working Table>> Made up by Precision Alloy and Imported Precise Beeline Device, can be lifting and shifting from left to right. Easy to adjust the laser focus distance.
7. Laser Power Supply>> Adopt Taiwan Famous brand, Stable performance, long life span.
8. Portable Handle>>Easy to held the machine by hand.
9. Emergency Stop>> Press it when meets error, the machine will stop working immediately to avoid losses.
10. Key Switch>> Using key swith to control the power of the machine.
11. Main Switch>> It is designed as a easy button, safe and efficient.
| Model | MAN-F10/20/30/50 |
| Laser power | 10W/20W/30W/50W |
| Laser Wavelength | 1064±10nm |
| Q-frequency | 20KHz~100KHz |
| Divergence | 0.3mard |
| Marking range | 110*110mm/150*150mm/200*200mm/300*300mm |
| Minimum line width | 0.01mm |
| Minimum character | 0.1mm |
| Marking speed | 7000mm/s |
| Marking depth | 0 ~1mm |
| Engraving line speed | ≤7000mm/s |
| Repeatability accuracy | ±0.001mm |
| Beam quality | M2:1.2~1.8 |
| Marking Format | Graphics, text, bar codes, two-dimensional code, automatically marking the date, batch number, serial number,frequency,etc. |
| Graphic format supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
| working voltage | 220V±10%/50Hz/4A |
| Unit power | 0.5kw |
| Working environment | Clean and dust free or dust less |
| Working (Humidity) | 5%-75%,free of condensed water |
| Laser module life | 100000 hours |
| Net weight | 35kg |
| Warranty | 36 months |
It is widely used in industrial: bearings, gears, and a variety of automotive parts, hardware and tools, aerospace components, integrated circuit chips, computer accessories, watches, electronics and communications products.Home appliances, wire and cable, food packaging, jewelery, tobacco.
Jewelry, adornments, rings, necklace, bracelet and many other areas of graphics and text markup.
Components of automobiles and motorcycle, packaging of goods, drink and cigarette, Nameplate and etc.
