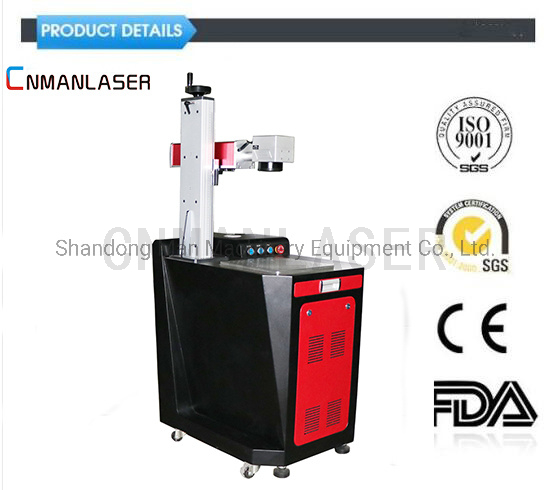

MAN-100W
CNMANLASER
Fiber Laser Marking Machines' 10 Advantages:
1. Best Marking Effect: The laser beam of fiber laser is fine and thin. It can provide the best marking effect among all the laser machine machines. Especially good in smallest character marking, such as mark on IC chip.
2. Deep Marking: Fiber laser can make deep marking up to 0.5mm on stainless steel and aluminium. While YAG and Diode marking only could mark 0.2mm-0.3mm. So it's suitable for the industries which has high requirement to the depth and accuracy.
3. Higher Accuracy: Fiber laser can reach upto 0.001mm precision, while diode only 0.01mm.
4.10 Years Long lifetime: We used the fiber laser module made by Germany IPG technology, the lifetime of the fiber laser device is 100 thousand hours, so the machine can be used for 8-10 years. As for diode laser module is 20 thousand to 30 thousand hours and only can be used for 1-3 years.
5. No consumables: Fiber laser machine can be used for 8-10 years with any consumables.
6. No need to adjust the laser path: Fiber laser beam comes out from the fiber device directly, so no need to adjust the laser optical path. While Diode laser need to adjust the laser optical path regularly.
7. Free of Maintenance: Fiber laser machine can be used free of maintenance. Diode laser need to change the diode module and recycle water regularly.
8. Use Integrated Air Cooling: Fiber laser uses integrated air cooling, and the cooling effect is excellent than the water cooling used in Diode and YAG laser. Also, air cooling no need to maintain, save many cost and energy.
9. Low Power Consumption: Low cost, only 0.5kw/hour. While Diode is 3kw/hour, and YAG is 5 kw/hour. Fiber laser is more economized and environmental.
10. Small and compact: The volume of fiber laser marking machine is small,
Fiber Laser Marking Machine Technical Data:
| Laser Sourse | |
| IPG Series | Pulsed, High Energy Ytterbium Fiber Lasers |
| Mode of operation | Pulsed |
| Polarization | random |
| Q-switched operation | |
| Output power adjustment range | 10%-100% |
| Nominal average output power W | 10W/20W/30W/50W |
| Central emission wavelength | 1060-1070 nm |
| Emission Bandwidth (FWHM) | < 10 nm |
| Long-term average power instability | < 5% |
| Pulse width, (FWHM) | 100 ns |
| Laser switching ON time | 180 μ sec |
| Laser switching OFF time | 180 μ sec |
| Pulse Repetition Rate* kHz | 20-80 kHz |
| Energy per pulse (PRR = 20 kHz) | 0.95 mJ |
| Typical beam quality | < 1.8 |
| Output fiber delivery length | 3m |
| OperatingVoltage | 220V |
| Max. Power consumption | 600W |
1.Metals and alloys (iron, copper, aluminum, magnesium, zinc and all other metals),plastics,rare metals and alloys (gold, silver,titanium),
2.metal oxides (metal oxide may be), special surface treatment(Phosphatize, aluminum anodizing, electroplating the surface),
3.ABS material (electrical appliances shell, daily necessities), ink (translucent keys, print products), epoxy resin(electronic components, packaging, insulation layer).etc.
Fiber Laser Marking Machine Service:
>>> All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers will be get good products from us. and all of our machine with a12 months quality guarantee period.
>>> We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.
>>> We will offer plenty of online supports, by email, video, telephone and fax.
>>> Our engineer can make a door-to-door instruction training service.
