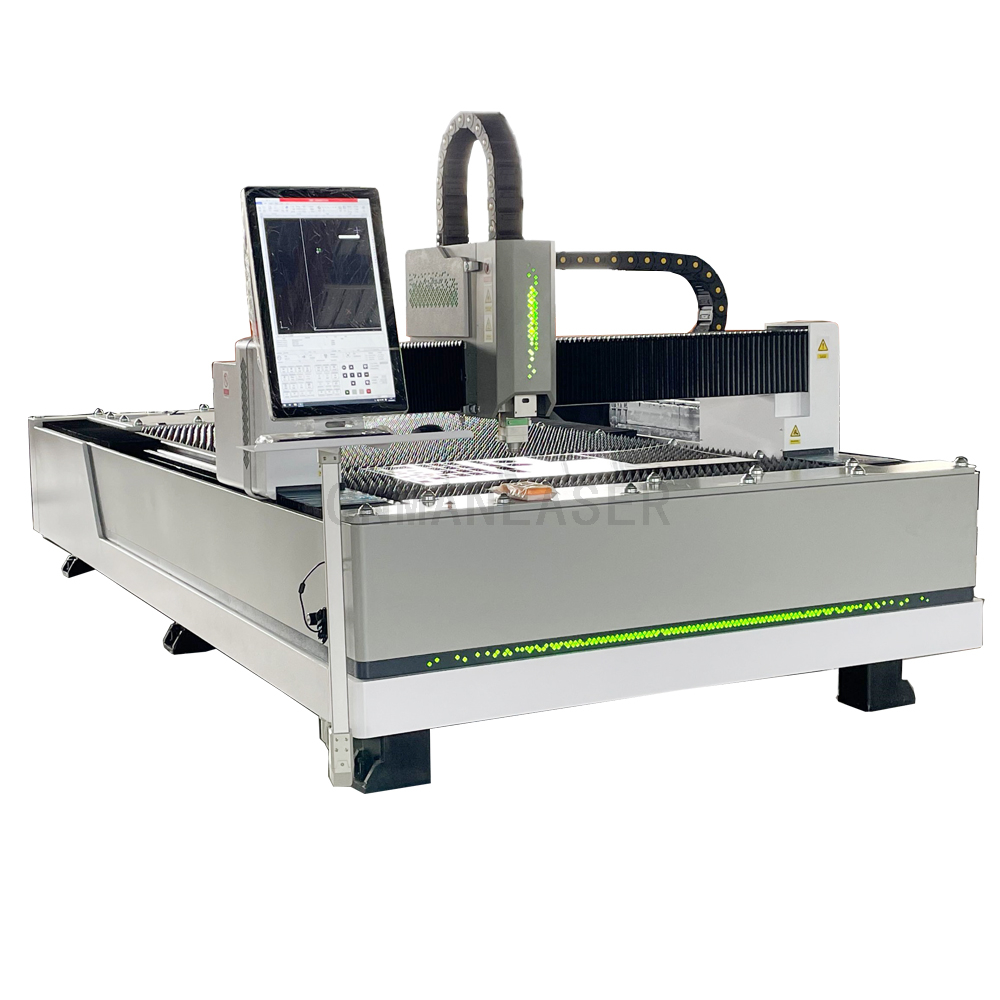

China CNC/ Metal /Stainless Steel/Iron/Aluminum/Copper/ Ss/Engraving Fiber Laser Cutter Machine

 fiber laser cutting machine which consist of machine tool,motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts,so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.
Availability:
Quantity:
  • MAN-1000W

China CNC/ Metal /Stainless Steel/Iron/Aluminum/Copper/ Ss/Engraving Fiber Laser Cutter Machine

222561

Technical Parameter>>>

Laser Type Fiber Laser
Laser Technology Germany Technology
Max. Cutting Thickness (mm) 1-5mm carbon steel
Max. Cutting Speed 5-20 Meters / Min (up to Materials)
Max. Location Speed 60m/min
Laser Wavelength 1070nm
Minimum Line Width ≤0.1mm
Location Precision ≤±0.05mm
Re-Location Precision ±0.02mm
Max. Moving Speed 100m/min
Supporting Format PLT, DXF, BMP, AI
Power Demand 380V/50Hz
Cooling Way Water Cooling
Transmission Method Ball Screw Transmission
Table-Driven System Japanese Imported Panasonic / Yaskawa Servo Motor &
Driving System
Focus Method Following and Automatic Adjust Focus
Control Method Offline Movement Control

Detailed Images>>>
未标题-1-的Sample Show>>>

未标1

Packaging & Shipping>>>
加水印Contact us>>>

Slice 8Slice 9Slice 5Slice 6
