man-2040
CNMANLASER

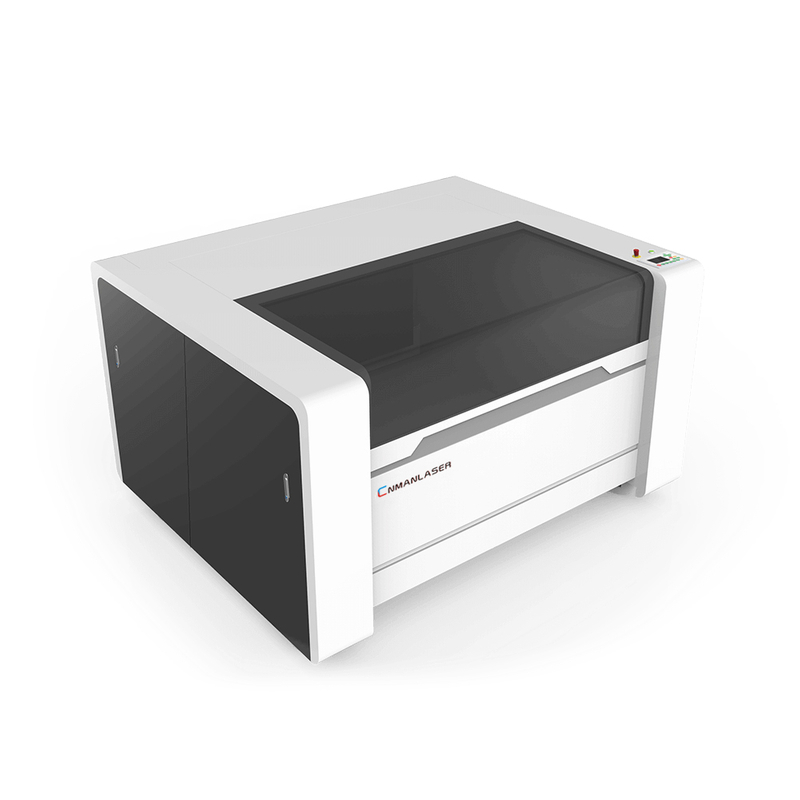

High Precision Stainless Steel / Brass/ Aluminum / Iron /Copper/ Metal Laser Cutter
>>>>>Metal Laser Cutter Product Advantages
1. Adopted Original German import fiber laser source, with long using life up to 150000 hours and high cutting speed up to 15m/min;
2. Japan YASKAWA Servo motor with double ball screw driving system, can make sure the cutting high precision especially comparing with the single driver system.
USA Imported laser cutting head with auto focusing height follower, which can ensure
the constant same distance between the head and cutting material
4. The cutting slot is very slim, can reach up to 0.05mm. The machine is very suitable for processing precision parts with high efficiency.
Automatic Lubrication System for Mechanic, which can lubricate the linear guiderail nearly 500 times per minute to make sure the high precision.
6. Convenient Collecting System, which has the special funnel design to make collecting more easy.
7. Free of any maintenance, because of Fiber optical transmission, fiber line transmission, no need reflect lens, without optical adjustment, save maintenance cost.
Metal Laser Cutting Machine Application:
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium, alloy, galvanized steel sheet, pickling board, aluminium zinc plate, copper and many kinds of metal materials cutting and so on.
Metal Laser Cutting Machine Data:
| Model | MAN-2040 |
| Working Area | 2000*4000mm |
| Whole size | 1980*1460*1020mm |
| Laser Power | 150w/180w/300w |
| Engraving Speed | 1-60000mm/min |
| Cutting Speed | 1-10000mm/min |
| Min shaping character | Letter 1mm,Chinese 2mm |
| Repeat Location Accuracy | ± 0.0125mm |
| Laser Power Controlling | 1-100% Manual Adjustment and Software Controlling |
| Resolution ratio | <0.01mm |
| Location ratio | <0.01mm |
| Working temperature | 5ºC-40ºC |
| Working humidity | 5%-95%(without condensed water) |
| Working voltage | AC220V(±10%) 50Hz/AC110V(±10%)60Hz |
| Cooling Mode | Water Cooling and Protect System |
| Cutting Platform | Professional Thickening Strip or Honeycomb Work Table |
| Controlling Mode | CNC Professional Control System |
| Support Graphics Formats | BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT |
| Power Controlling Mode | Laser Energy Combining Movement Control System |
| Control Software | Original Perfect Laser's Engraving & Cutting Software&Auto CAD |
| Training | Video Training |
| Guarantee | 12 month Guarantee Period |
