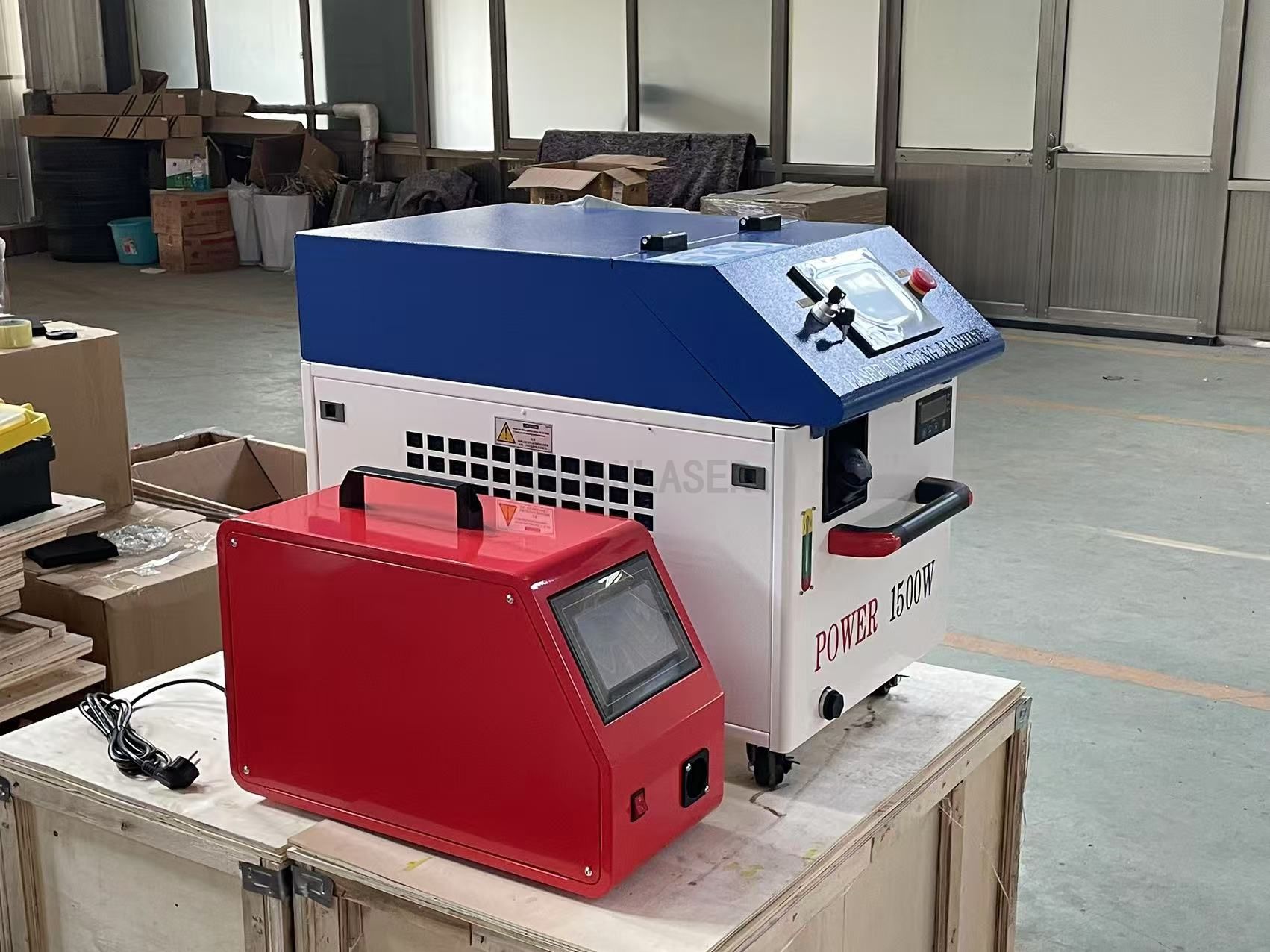

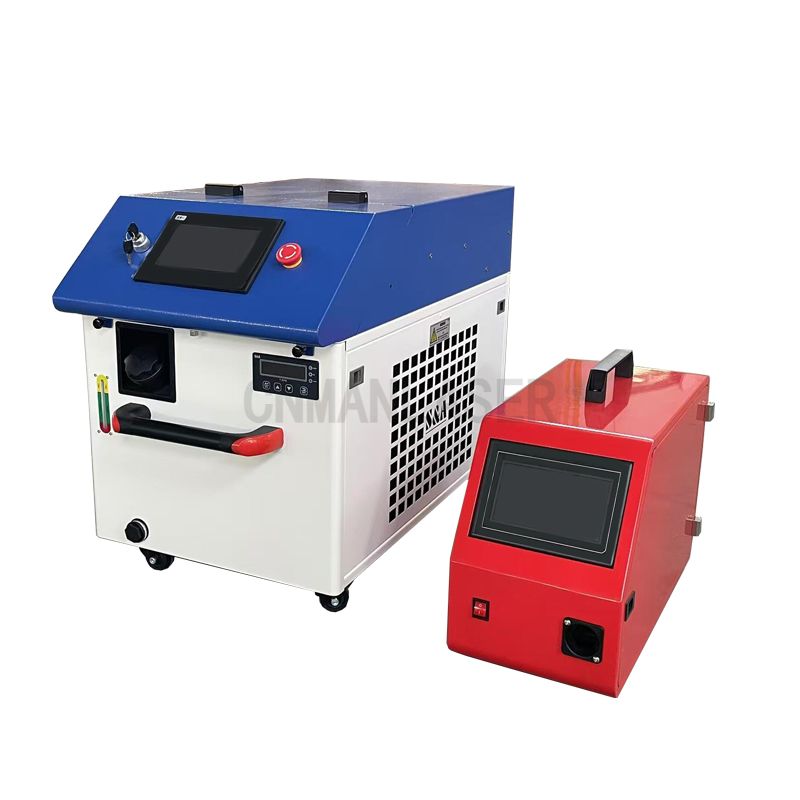

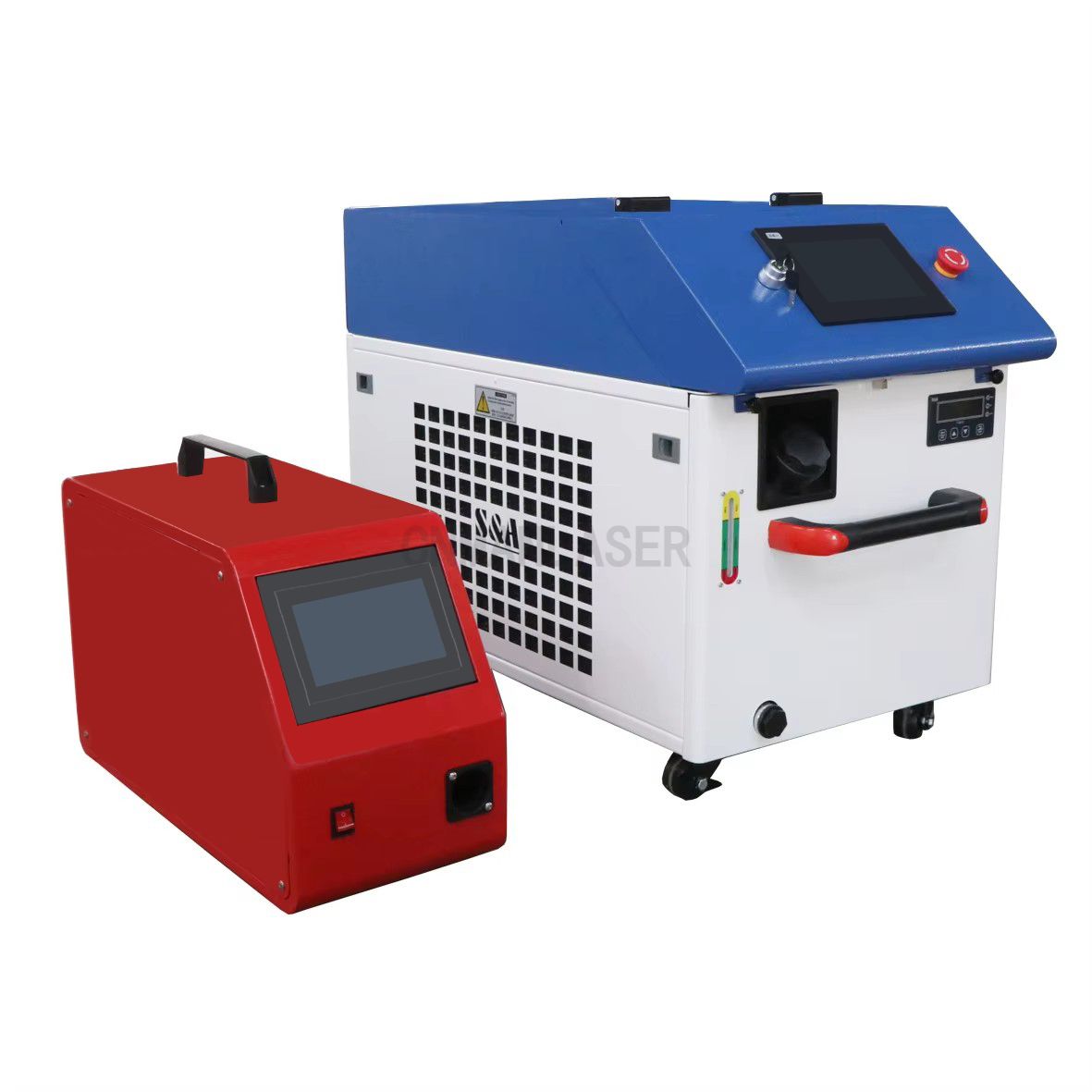

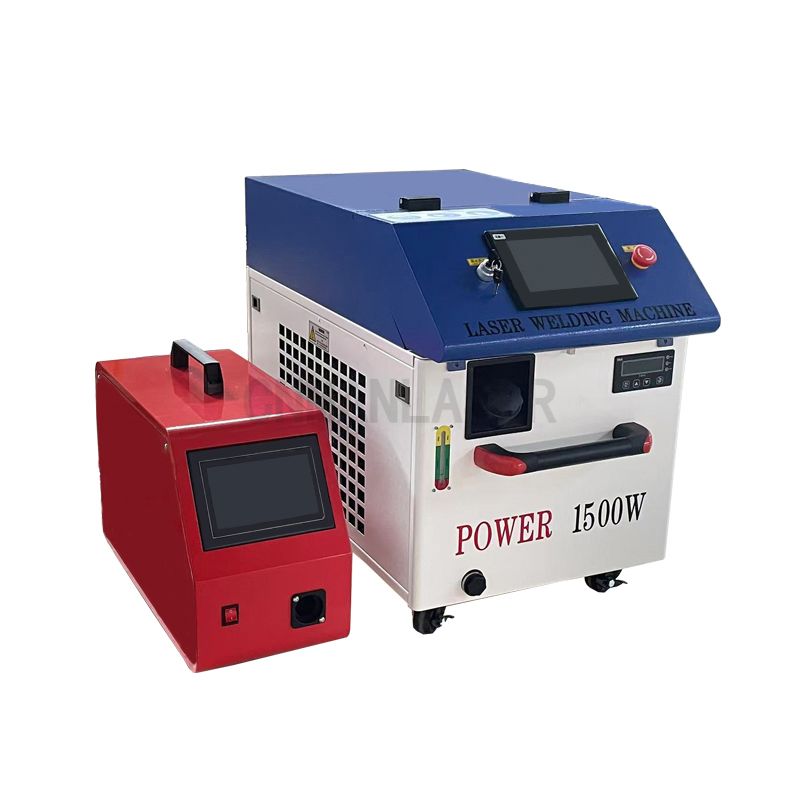

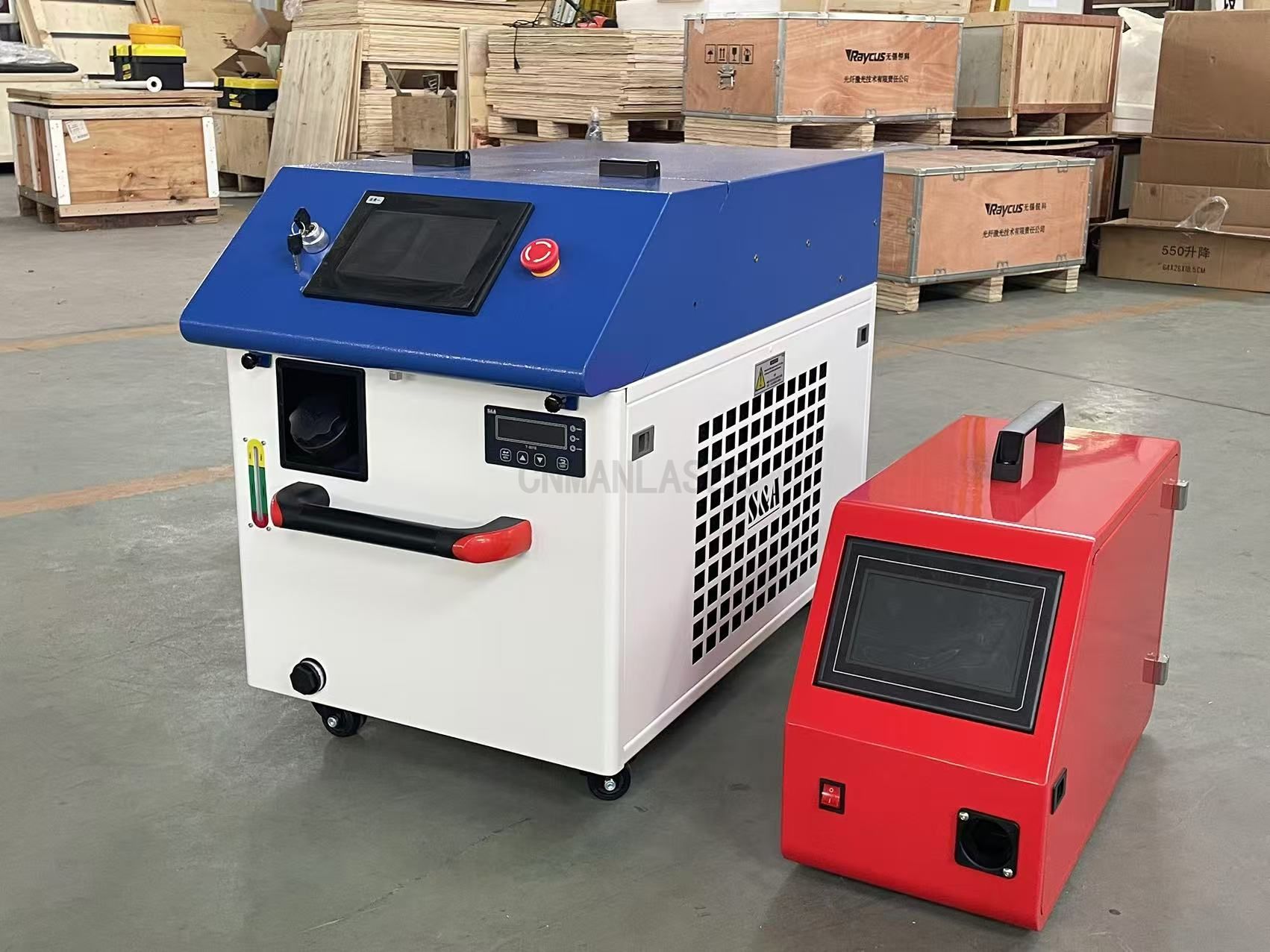

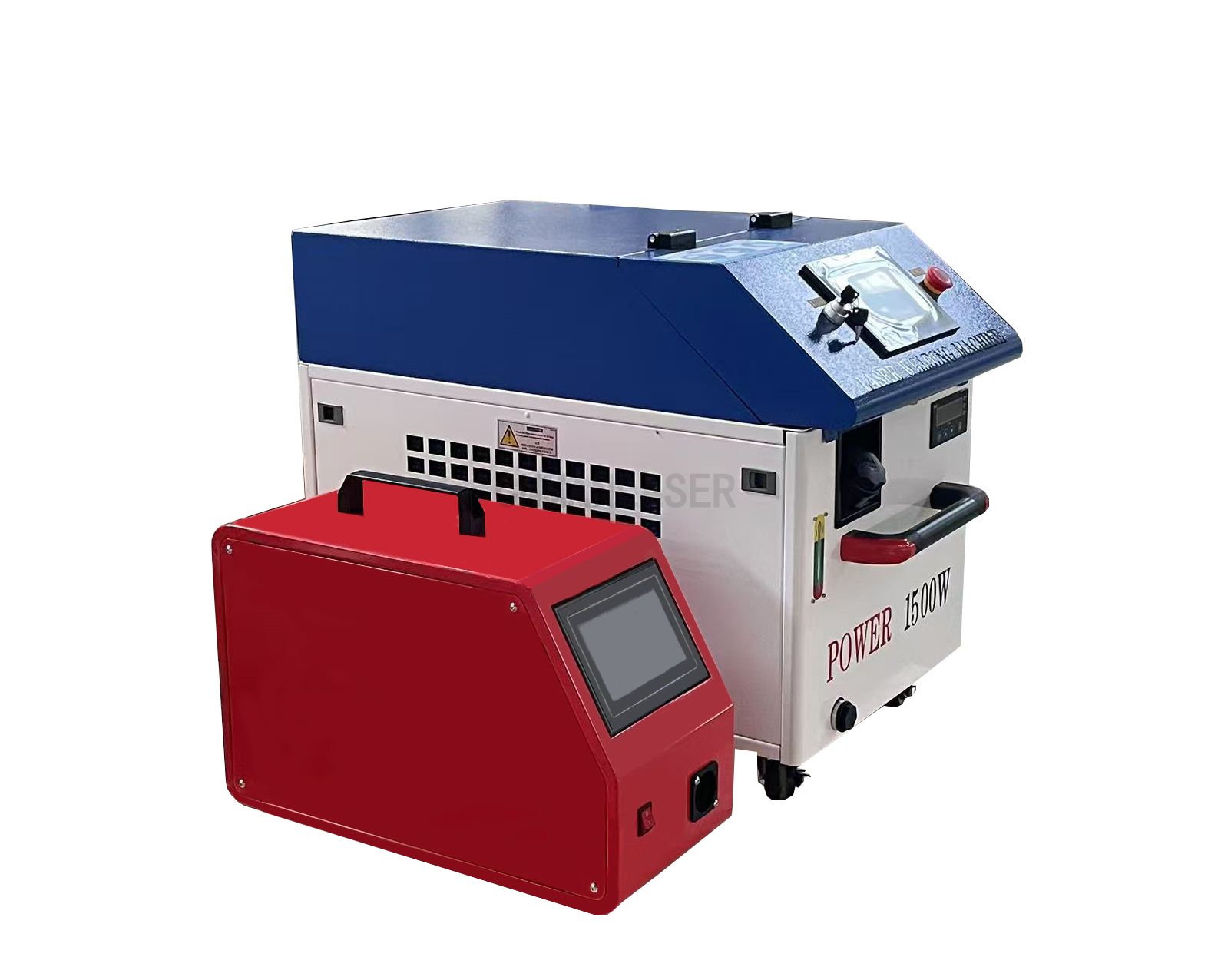

1. Picture for Welding Machines
2. Main Parameters Of Welding Machines
| Maximum laser power | 1000W | 1500W | 2000W |
| Laser wavelength | 1070±10nm | 1070±10nm | 1070±10nm |
| Pulse width | Continuous light output | Continuous light output | Continuous light output |
| Number of optical fiber output | 1 line | 1 line | 1 line |
| Welding depth | 0.2-1.5mm | 0.2-2mm | 0.2-3mm |
| Total power | <6KW | <8KW | <10KW |
| Power input | AC220V+10%/3P+PE | AC220V+10%/3P+PE | AC380V+10%/3P+PE |
| Host size(mm) | 480W*850D*224H | 600W*1400D*1050H | 600W*1400D*1050H |
| Cooling mode | water-cooling | water-cooling | water-cooling |
| Optical fiber model | QBH | QBH | QBH |
| Fiber diameter | 50um | 50um | 50um |
| Fiber length | 10m | 10m | 10m |

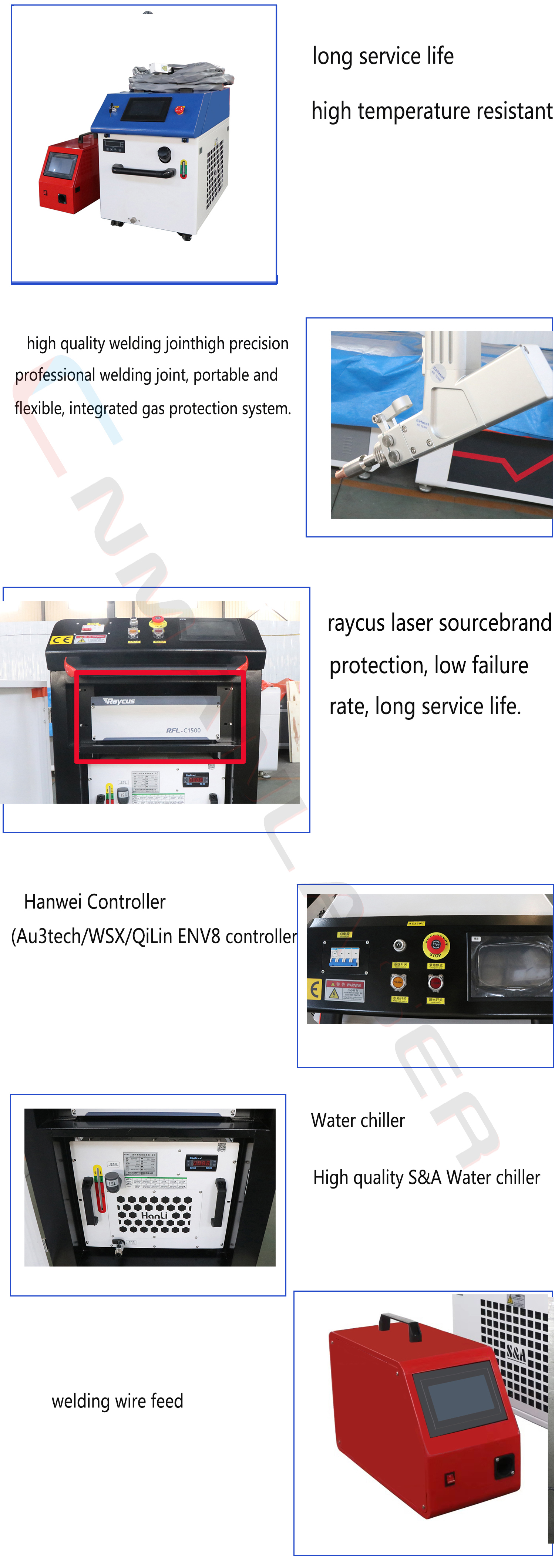

3.Detailed Images:
Sample Show:
laser welding machine is widely used in high-precision metal parts welding, electronic components welding, picture tube electron gun welding, missile detector welding, mobile phone vibration motor welding, detonator engine welding, car lights and xenon lamp welding, precision optoelectronic parts welding, etc.
Packaging & Shipping:
1. Picture for Welding Machines
2. Main Parameters Of Welding Machines
| Maximum laser power | 1000W | 1500W | 2000W |
| Laser wavelength | 1070±10nm | 1070±10nm | 1070±10nm |
| Pulse width | Continuous light output | Continuous light output | Continuous light output |
| Number of optical fiber output | 1 line | 1 line | 1 line |
| Welding depth | 0.2-1.5mm | 0.2-2mm | 0.2-3mm |
| Total power | <6KW | <8KW | <10KW |
| Power input | AC220V+10%/3P+PE | AC220V+10%/3P+PE | AC380V+10%/3P+PE |
| Host size(mm) | 480W*850D*224H | 600W*1400D*1050H | 600W*1400D*1050H |
| Cooling mode | water-cooling | water-cooling | water-cooling |
| Optical fiber model | QBH | QBH | QBH |
| Fiber diameter | 50um | 50um | 50um |
| Fiber length | 10m | 10m | 10m |
3.Detailed Images:
Sample Show:
laser welding machine is widely used in high-precision metal parts welding, electronic components welding, picture tube electron gun welding, missile detector welding, mobile phone vibration motor welding, detonator engine welding, car lights and xenon lamp welding, precision optoelectronic parts welding, etc.
Packaging & Shipping:
