MAN-100
CNMANLASER

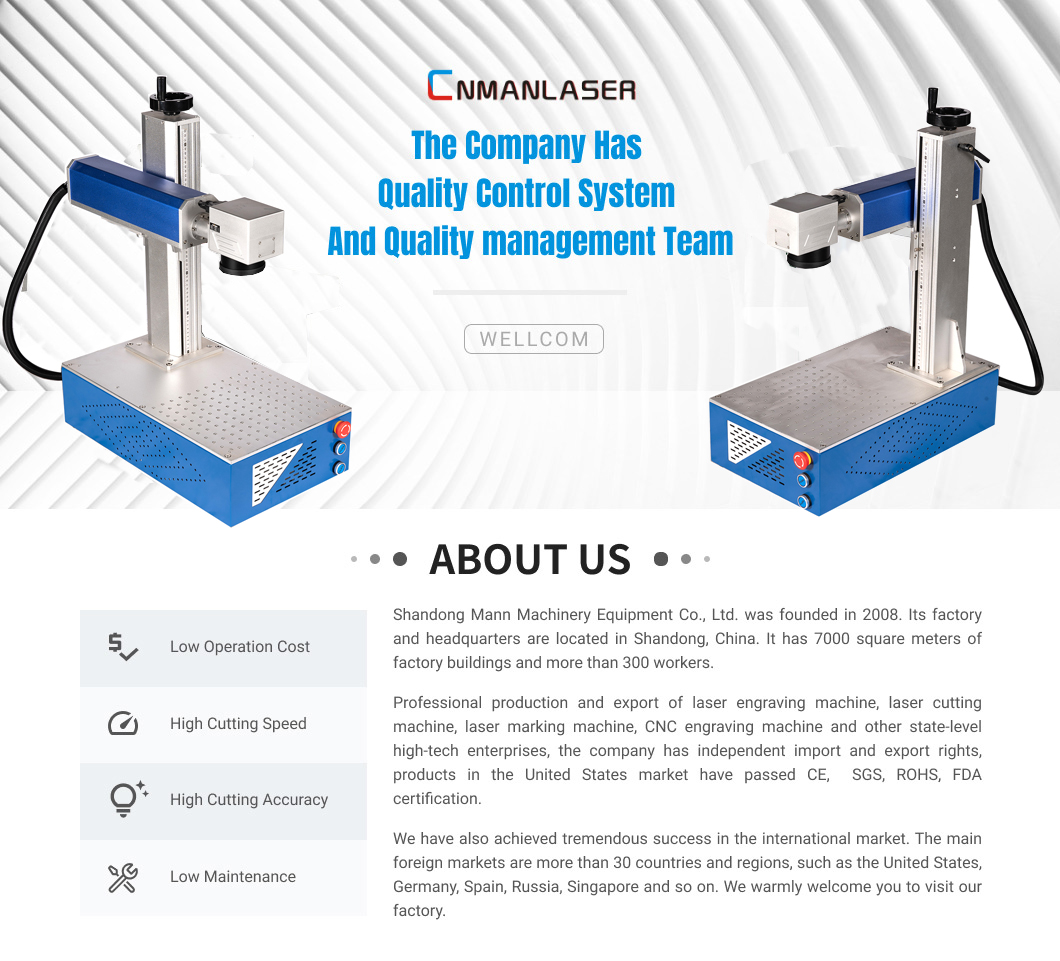

Product Description:
The fiber laser marking machine adopts air cooling method, the laser beam quality is excellent, the basic mode (TEM00), the electro-optical conversion efficiency is high, the energy consumption of the whole machine is very low, no maintenance is required, the service life is long, and the operating cost is low.
Integrated overall structure, small size, suitable for working in harsh environments, and more suitable for fine marking.
Also, the laser has a long life and high stability.
It is mainly composed of three parts: laser, vibrating lens and marking card. It uses fiber laser to produce laser marking machine. The beam quality is good. Its output center is 1064nm. The life of the whole machine is about 100,000 hours. Compared with other types of laser marking The life of the device is longer, and the electro-optical conversion efficiency is more than 28%. Compared with other types of laser marking machines, the conversion efficiency of 2%-10% has a great advantage. It has outstanding performance in energy saving and environmental protection.
Product Parameters:
| Average output power | 20W | 30W | 50W | 100W |
| Laser wavelength | 1064nm | 1064nm | 1064nm | 1064nm |
| Power adjustment range | 10-100% | 10-100% | 10-100% | 10-100% |
| repeat frequency | 20-80KHz | 20-80KHz | 20-80KHz | 20-80KHz |
| Output beam quality | 1.4-1.8 M2 | 1.4-1.8 M2 | 1.4-1.8 M2 | 1.4-1.8 M2 |
| Divergence angle | 0.3mrad | 0.3mrad | 0.3mrad | 0.3mrad |
| Minimum focus spot | 0.005mm | 0.005mm | 0.005mm | 0.005mm |
| Electro-optical conversion | 30% | 30% | 30% | 30% |
Product Description:
The fiber laser marking machine adopts air cooling method, the laser beam quality is excellent, the basic mode (TEM00), the electro-optical conversion efficiency is high, the energy consumption of the whole machine is very low, no maintenance is required, the service life is long, and the operating cost is low.
Integrated overall structure, small size, suitable for working in harsh environments, and more suitable for fine marking.
Also, the laser has a long life and high stability.
It is mainly composed of three parts: laser, vibrating lens and marking card. It uses fiber laser to produce laser marking machine. The beam quality is good. Its output center is 1064nm. The life of the whole machine is about 100,000 hours. Compared with other types of laser marking The life of the device is longer, and the electro-optical conversion efficiency is more than 28%. Compared with other types of laser marking machines, the conversion efficiency of 2%-10% has a great advantage. It has outstanding performance in energy saving and environmental protection.
Product Parameters:
| Average output power | 20W | 30W | 50W | 100W |
| Laser wavelength | 1064nm | 1064nm | 1064nm | 1064nm |
| Power adjustment range | 10-100% | 10-100% | 10-100% | 10-100% |
| repeat frequency | 20-80KHz | 20-80KHz | 20-80KHz | 20-80KHz |
| Output beam quality | 1.4-1.8 M2 | 1.4-1.8 M2 | 1.4-1.8 M2 | 1.4-1.8 M2 |
| Divergence angle | 0.3mrad | 0.3mrad | 0.3mrad | 0.3mrad |
| Minimum focus spot | 0.005mm | 0.005mm | 0.005mm | 0.005mm |
| Electro-optical conversion | 30% | 30% | 30% | 30% |
