MNA-30w
CNMANLASER

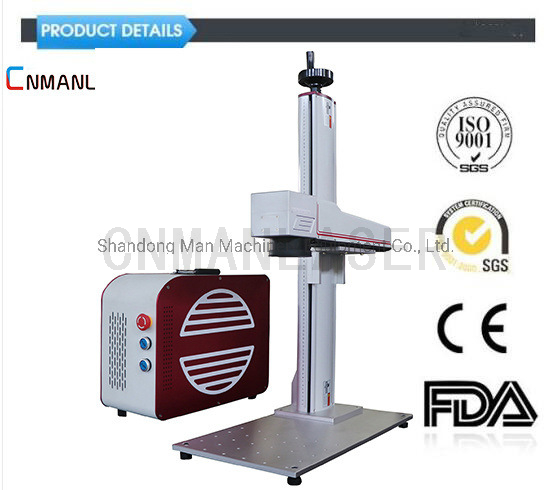

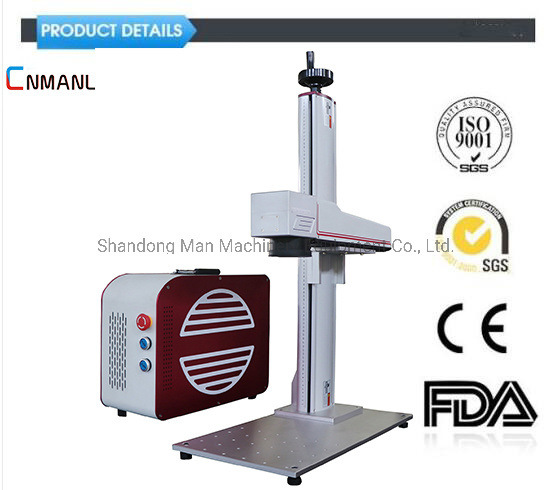

Fiber Laser Marker Engraver Machine Characters Features:
1. Best Marking Effect>> the laser beam of color laser printer fiber laser mark machine is fine and thin. It can provide the best marking effect among all the laser machine machines. Especially good in smallest character marking, such as mark on IC chip.
2. Deep Marking>>color laser printer fiber laser mark machine can make deep marking up to 1.0mm on stainless steel and aluminum. While YAG and Diode marking only could mark 0.2mm-0.3mm.
3. Higher Accuracy>>color laser printer fiber laser mark machine can reach unto 0.001mm precision, while diode only 0.01mm.
4. 10 Years Long lifetime>>We used the fiber laser module made by Germany IPG technology, the lifetime of the fiber laser device is 100,000 hours, so the machine can be used for 8-10 years.
5. No consumables>> color laser printer fiber laser mark machine can be used for 8-10 years without any consumables.
6. No need to adjust the laser path.
7. Free of Maintenance.
8. Use Integrated Air Cooling.
9. Low Power Consumption>> low cost, only 0.5kw/hour.
| IPG Series | Pulsed, High Energy Ytterbium Fiber Lasers | |||
| Mode of operation | Pulsed | |||
| Polarization | random | |||
| Q-switched operation | ||||
| Output power adjustment range | 10%-100% | |||
| Nominal average output power W | 10W/ 20W/ 30w /50W /100w | |||
| Central emission wavelength | 1060-1070 nm | |||
| Emission Bandwidth (FWHM) | <10 nm | |||
| Long-term average power instability | <5% | |||
| Pulse width, (FWHM) | 100 ns | |||
| Laser switching ON time | 180 μsec | |||
| Laser switching OFF time | 180 μsec | |||
| Pulse Repetition Rate* kHz | 20-80 kHz | |||
| Energy per pulse (PRR = 20 kHz) | 0.95 mJ | |||
| Typical beam quality, M2 | <1.8 | |||
| Output fiber delivery length | 3m | |||
| Operating voltage | 220V | |||
| Max. Power consumption | 600W | |||

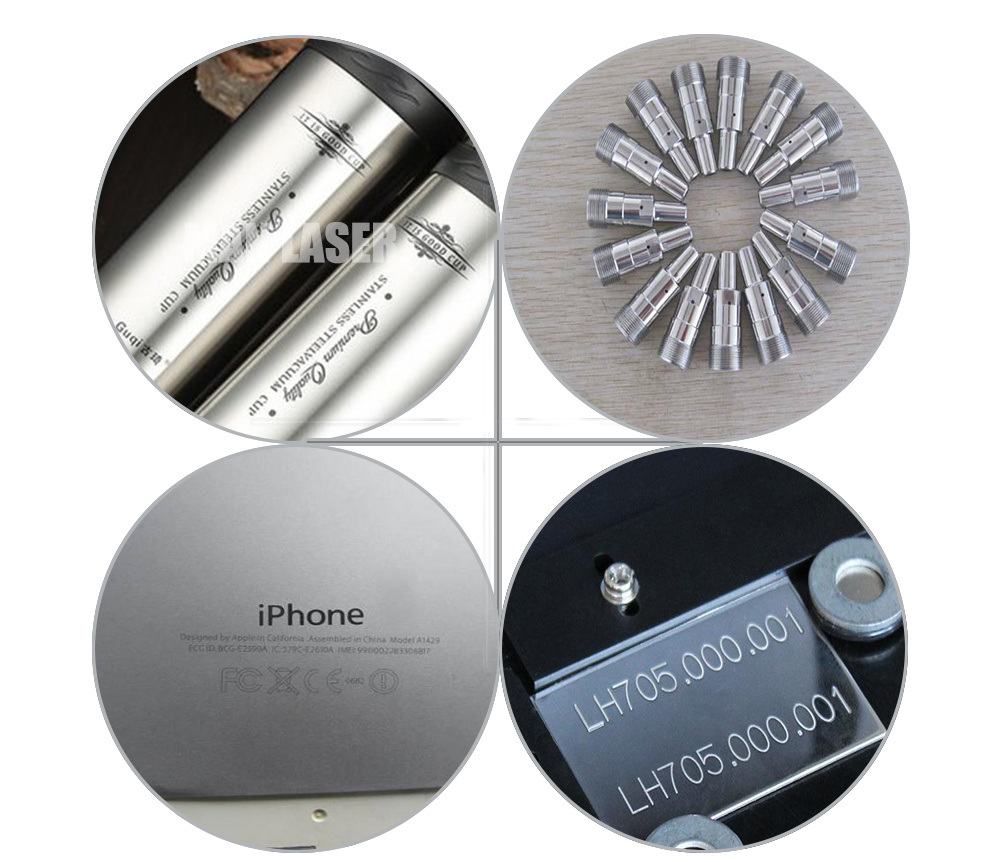

Fiber Laser Marker Engraver Machine Application:
This type mini fiber laser marker is suitable for Gold, Silver, Diamond, Sanitary Equipments, Foods Packing, Tobacco Label, Beer label, Drink Label, Medicine Packing, Medical Equipments, Glasses and Clock, Auto Parts,Plastic& Paper Materials, the Electron, Hardware which with high request for depth, smooth,accuracy such as horologe, Mould, bitmap marking etc.
