MNA-30w
CNMANLASER

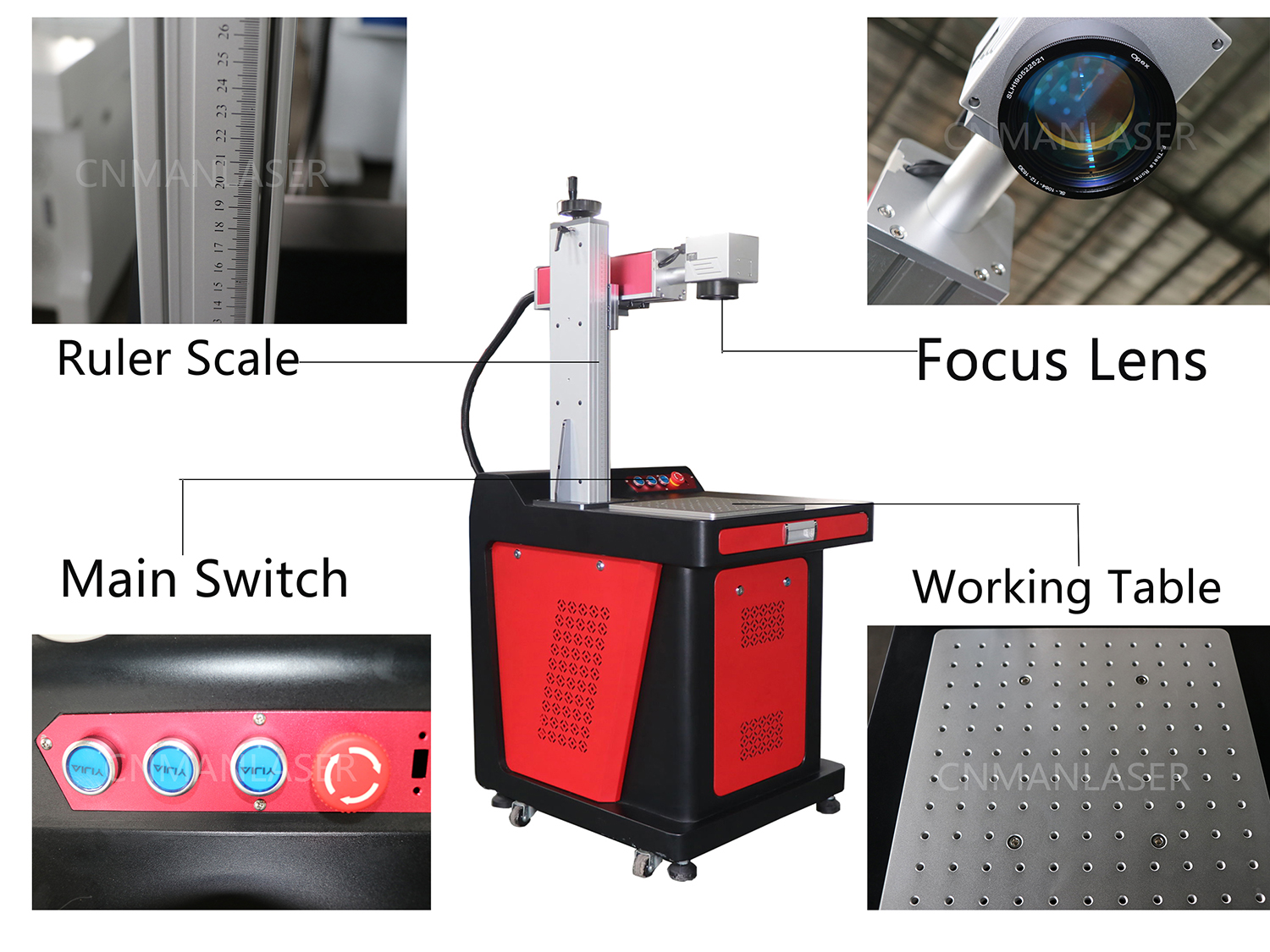

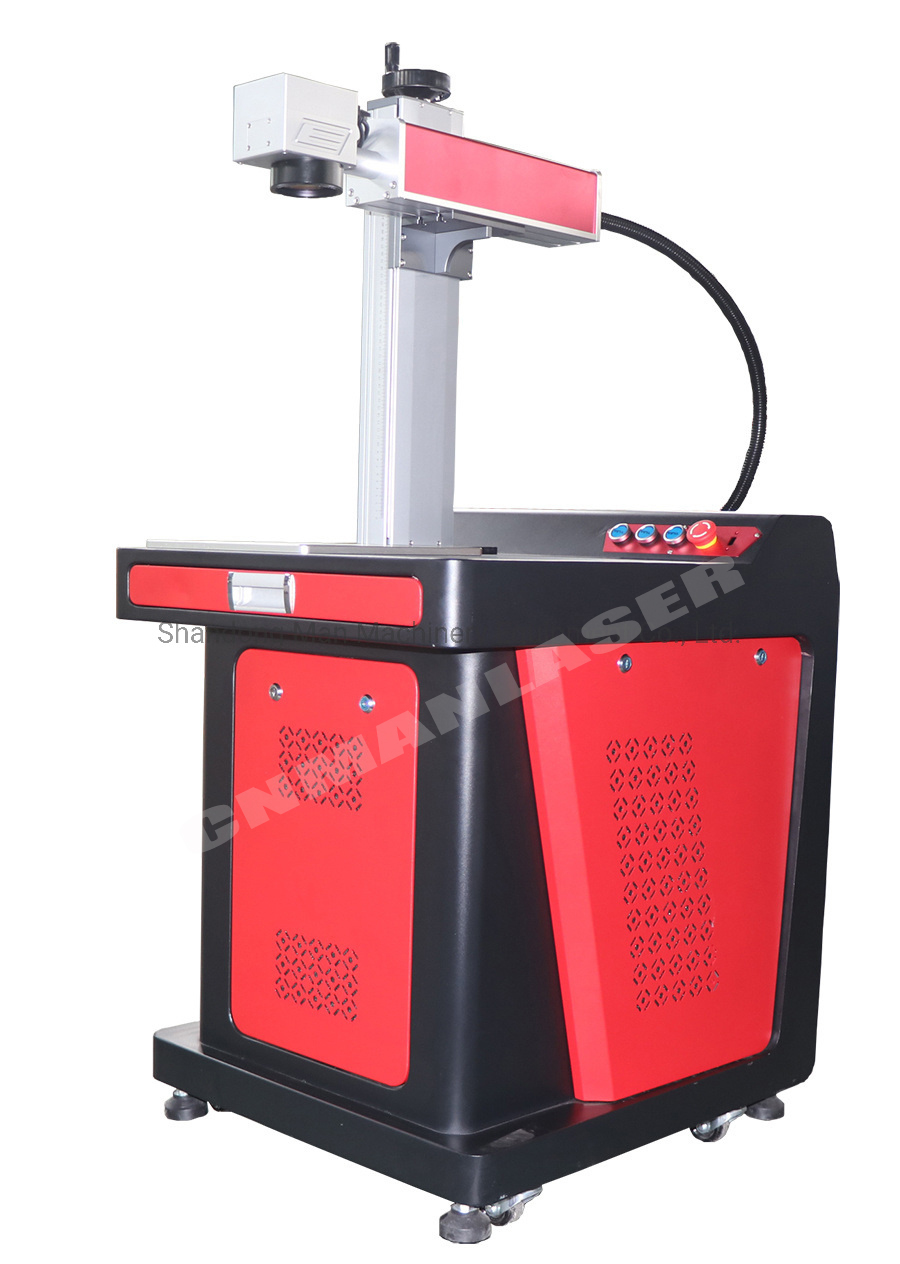

1.CNMANLASER-10W 20W 30W 50W portable optical fiber laser marking machine adopts the most advanced technology of the world.
2.It has features like the best optical mode.
3. excellent quality of laser beam; long operating life.
4.the highest electro-optical conversion efficiency
5.Small size, reliable and without maintenance.
6.suited for all metal and some kinds of non-metal marking.
7.It has been loved by customer in lots of fields, as soon as it has been introduced to the market.
Low Cost In Use >> No wearing part free of maintenance.
High Speed >> Imported laser scanning system makes the marking speed up to 7000mm/s .
High Precision>> High precision , re-position precision is 0.002mm.
Energy Saving>>The efficiency of optic electrical converting is up to 70%.
High Reliability>> MTBF ( mean time between failures ) >100 , 000 hours.
Integrated and Compact >> Small size only 0.5 M2, can be put on desk and easy to install .
Easy Operating>> easy operation ,VCD training , trouble free
10 Years Long Lifetime >> Fiber laser device adopts Germany IPG technology , 100000 hours lifetime .
No consumables>> while machine can be used free of maintenance for 8 -10 years.
Air cooling>> Adopts air cooling , has excellent cooling effect than the other cooling method.
| Model | CNMANLASER-10w/20w/30w/50w |
| Laser power | 10W/20W/30W/50W |
| Laser Wavelength | 1064±10nm |
| Q-frequency | 20KHz~100KHz |
| Divergence | 0.3mard |
| Marking range | 110*110mm/200*200mm/300*300mm |
| Minimum line width | 0.01mm |
| Minimum character | 0.1mm |
| Marking speed | 7000mm/s |
| Marking depth | 0 ~1mm |
| Engraving line speed | ≤7000mm/s |
| Repeatability accuracy | ±0.001mm |
| Beam quality | M2:1.2~1.8 |
| Marking Format | Graphics, text, bar codes, two-dimensional code, automatically marking the date, batch number, serial number,frequency,etc. |
| Graphic format supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
| working voltage | 220V±10%/50Hz/4A110v60HZ |
| Unit power | 0.5kw |
| Working environment | Clean and dust free or dust less |
| Working (Humidity) | 5%-75% |

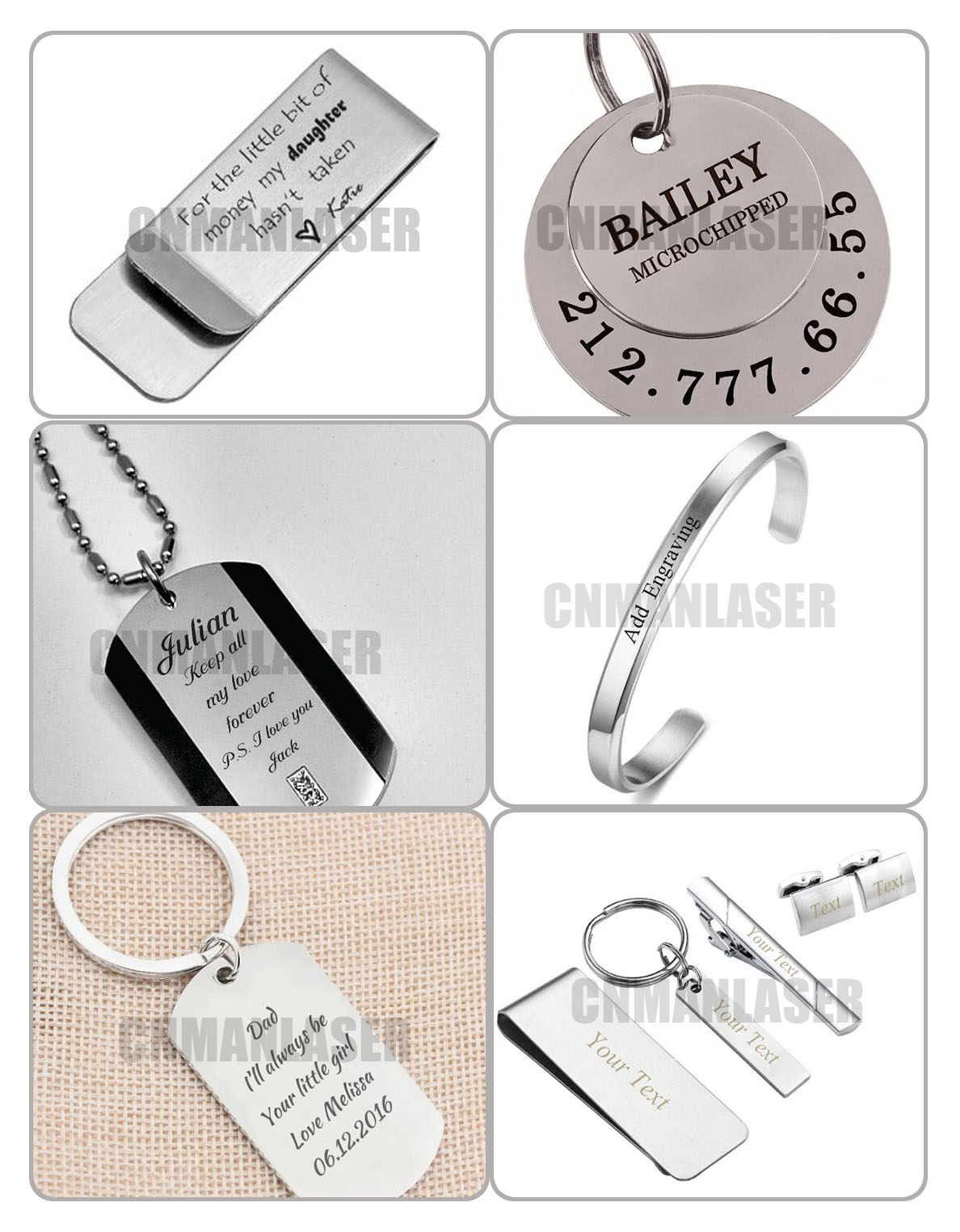

1.Metals and alloys (iron, copper, aluminum, magnesium, zinc and all other metals),plastics,rare metals and alloys (gold, silver,titanium),
2.metal oxides (metal oxide may be), special surface treatment(Phosphatize, aluminum anodizing, electroplating the surface),
3.ABS material (electrical appliances shell, daily necessities), ink (translucent keys, print products), epoxy resin(electronic components, packaging, insulation layer).etc.
