MNA-20w
CNMANLASER
TECHNICAL PARAMETER :

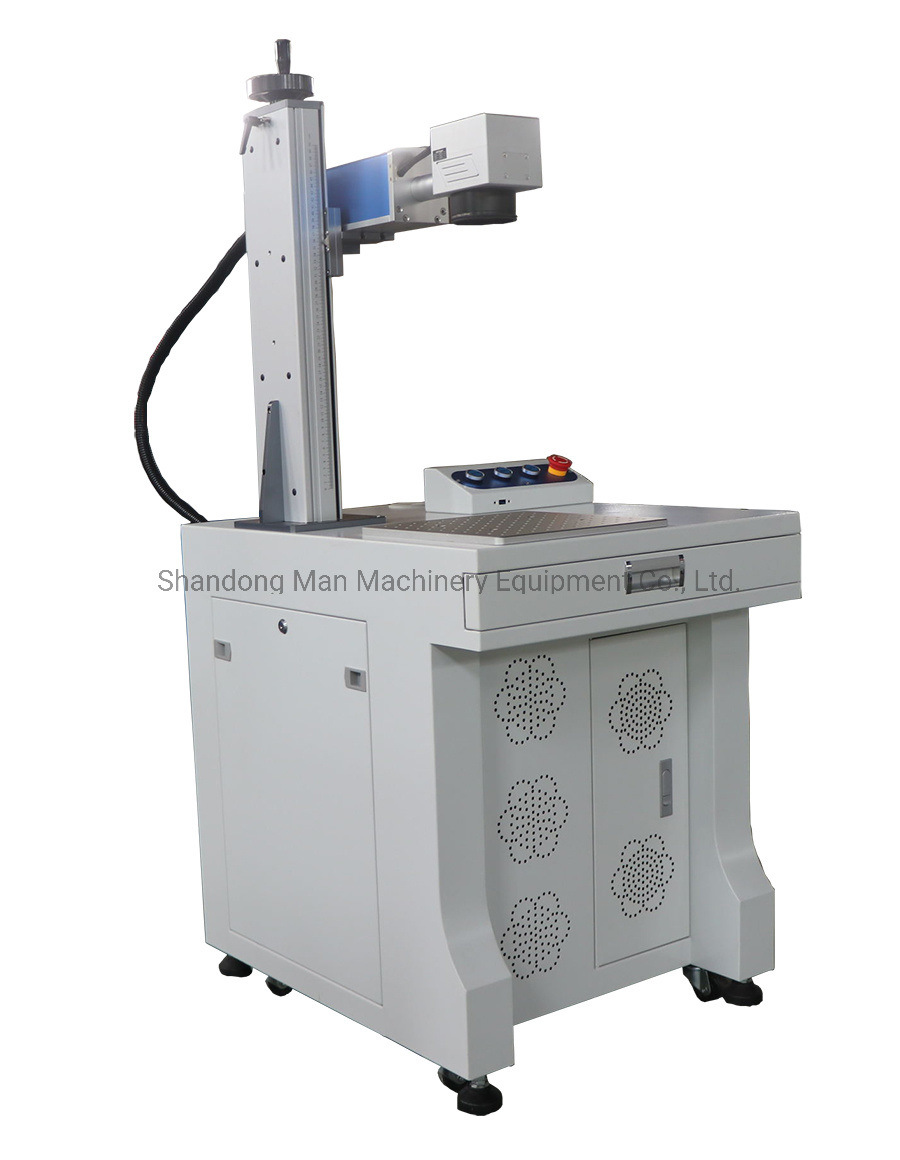

Product Name | 20W fiber laser marking machine |
Brand | Raycus/ Max / Ipg |
Laser Wavelength | 10.6μm |
Laser Beam Quality | M2:1.5 |
Repeat Frequency | 20KHz-80KHz |
Min Linear Width | 0.01mm |
Repeat Positioning Accuracy | 0.005mm |
Material | stainless steel, plastic, rubber, all metals |
Marking Speed | 7000mm/s |
Standard marking area | 110mmx110mm |
Choosen Area | 70mmx70mm,200mmx200mm |
Rated Power Consumption | <500W |
Operating Voltage | 220V/50Hz/15A |
Working life | 100000hours |
1) High Speed:
Perfect combination of software,hardware and high-speed galvanometer scanner realize high speed marking
2)No Consumables:
Improved lifetime of laser module,maintenance free and no consumables ensure low maintenance and operation cost.
3)Lower Energy Consumption:
Significant operation cost reduction due to about 50% photoelectric conversion efficiency.
4)Widely Suitable:
Pulse frequency can be modulated from 1 KHz to 1000 KHz to satisfy different application requirements of various materials
5)High Stability:
Optimized design of control system ensures stable processing and yield rate.
6)High Reliability:
Rapid cache transmission control,choice optical and electronic elements to ensure continuous work in long time and capacity.
1) Free Training by VCD:We will supply the machine with <Training VCD> , <User's Manual> and <Instruction Book> in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by E-mail, fax, telephone, MSN, ICQ and so on, when you meet some problems of installation, using or adjusting.(Recommend)
2) Free Training Factory:You can send operator to laser marker factory for free training. Laser marker will offer professional guide for free.It is direct and effective face-to-face training.Here we have well-assembled equipments, all sorts of tools and testing facility.
Training Time:2-3 days (Recommend)
3) Our engineer can do a door-to-door instruction training service at your local site.We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch.It's better to arrange a translator for both of our engineers during the training period.
Quality Guarantee and After-sales Services
1)The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination.Except the damage artificially and laser krypton lamp, we are responsible for offering the fittings free of charge during the guarantee period.While user is kindly requested to send the damaged fittings to us by courier with your charge before we send back the alternative fitting parts.After the guarantee of quality period, the parts required repairing or change, if any, shall be reasonable charged.
2)We will give technical guide by email, fax and telephone when user meets some problems on installation, operation, adjusting, maintaining.
3)We offer technical supporting to ensure safety using & maintenance for user:
Operation manual for installation, adjusting, operation, maintaining;
Professional marking software;
Operational marking software backup;
Quick supplement of key componentsUU with reasonable price.
Life-long after-sales service & consulting service to user.
