MNA-80w
CNMANLASER
CO2 laser marking machine is best way to print and engrave on wood, plastic and glass, it uses low laser heat to influence the surface of material, it will mark well without burn, most of people would like use co2 laser engrave picture and photos on wood as a souvenir and gift card, the laser marking speed can reach up to 7000mm/min, it is really a fast speed ever that could be much helpful in handmade crafting.
1. Digital Galvanometer Laser Scanning Head with Fast Marking Speed>>Fast Response Ability <0.7ms, High Speed Marking and High Precision.
2. Focus Mirror>> Singapore famous "Wavelength" brand, Fast speed, high transparent rate
3. Red Light Pointer>>Adopt red light pointer to show the laser path since laser beam is in-visible.
4. 3D Working Table>> Made up by Precision Alloy and Imported Precise Beeline Device, can be lifting and shifting from left to right. Easy to adjust the laser focus distance.
5. Laser Power Supply>> Adopt Taiwan Famous brand, Stable performance, long life span.
6. Portable Handle>>Easy to held the machine by hand.
7. Emergency Stop>> Press it when meets error, the machine will stop working immediately to avoid losses.
8. Key Switch>> Using key swith to control the power of the machine.
9. Main Switch>> It is designed as a easy button, safe and efficient.
| Machine model | Man-35 | Man-60W | Man-80W |
| Laser max. power | 35W | 60W | 80W |
| Laser wavelength | 10.6um | 10.6um | 10.6um |
| Beam quality | <1.2 | <1.2 | <1.2 |
| Repeat frequency | ≤30KHz | ≤30KHz | ≤30KHz |
| Marking range | 300mm*300mm | 300mm*300mm | ≤300mm*300mm |
| Marking speed | 250mm/s | 250mm/s | 300mm/s |
| Min. Line width | 0.06mm | 0.06mm | 0.06mm |
| Repetition accuracy | ±0.003mm | ±0.003mm | ±0.003mm |
| Machine power | 1KW | 1KW | 2KW |
| Power demand | 220V / 50Hz | 220V / 50Hz | 220V / 50Hz |

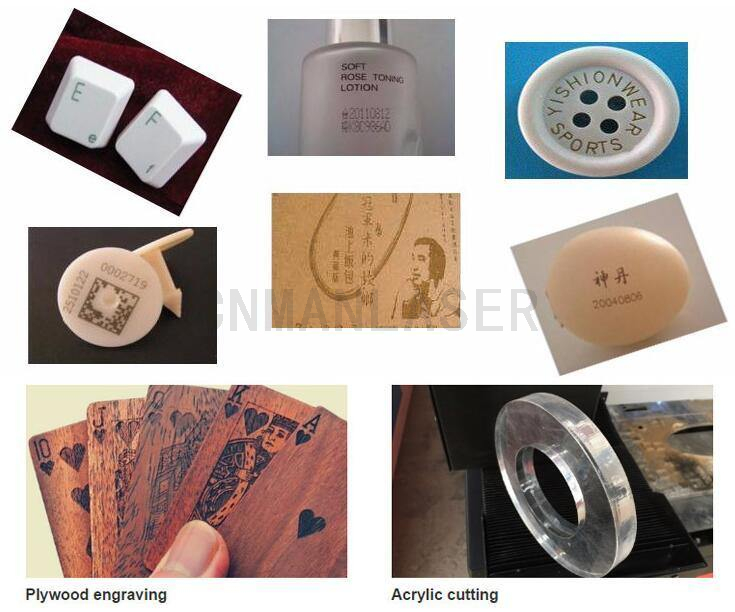

CO2 Laser Marking Machine is widely used for Jeans marking, Shoes Engraving, nylon marking, ABS/PVC/PC board marking, plastics marking, rubber marking, resin marking, medicine box marking, ceramic marking, fabrics marking, leather marking, etc. In the industries of garment engraving and cutting, fabric cutting, medical packaging, handicrafts & gift, building ceramics, beverage packaging tobacco packaging rubber items, nameplate casing, electronic components, leather and other industries.
