MAN-3000W
Technical Parameter>>>
| Laser Type | Fiber Laser | |
| Laser Technology | Germany Technology | |
| Max. Cutting Thickness (mm) | 1-5mm carbon steel | |
| Max. Cutting Speed | 5-20 Meters / Min (up to Materials) | |
| Max. Location Speed | 60m/min | |
| Laser Wavelength | 1070nm | |
| Minimum Line Width | ≤0.1mm | |
| Location Precision | ≤±0.05mm | |
| Re-Location Precision | ±0.02mm | |
| Max. Moving Speed | 100m/min | |
| Supporting Format | PLT, DXF, BMP, AI | |
| Power Demand | 380V/50Hz | |
| Cooling Way | Water Cooling | |
| Transmission Method | Ball Screw Transmission | |
| Table-Driven System | Japanese Imported Panasonic / Yaskawa Servo Motor & Driving System | |
| Focus Method | Following and Automatic Adjust Focus | |
| Control Method | Offline Movement Control | |

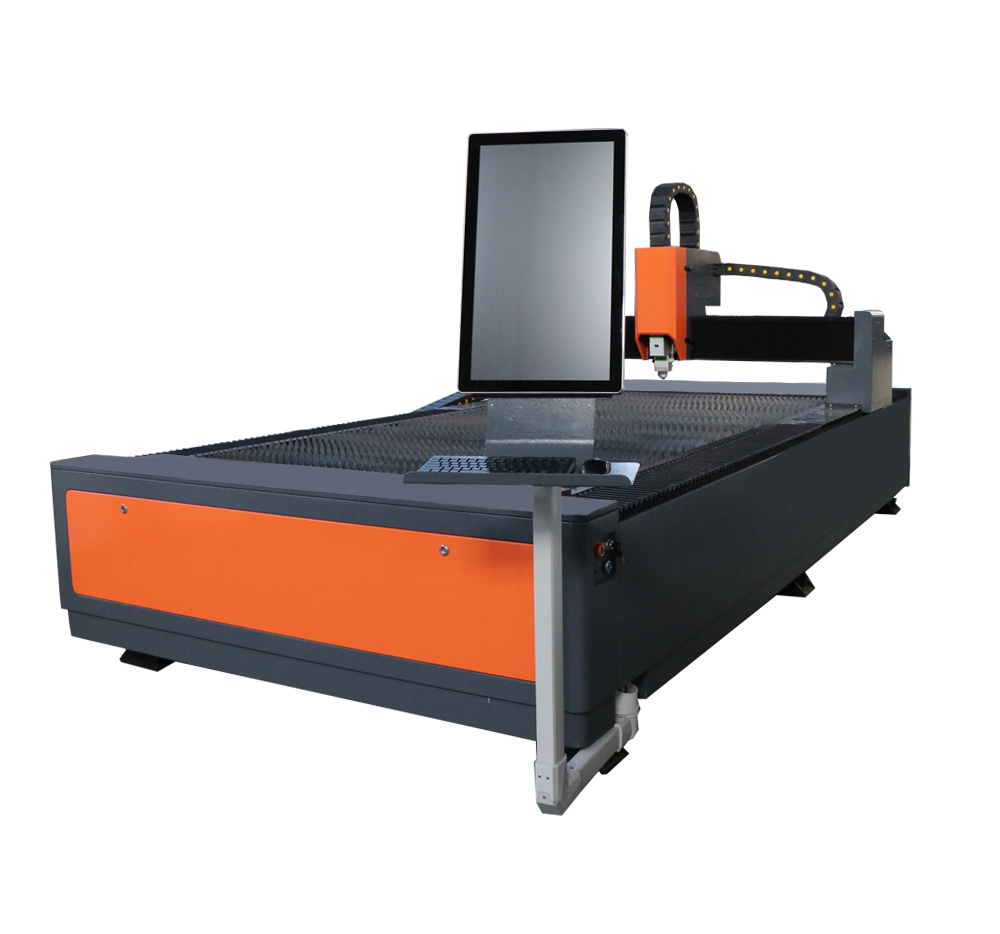

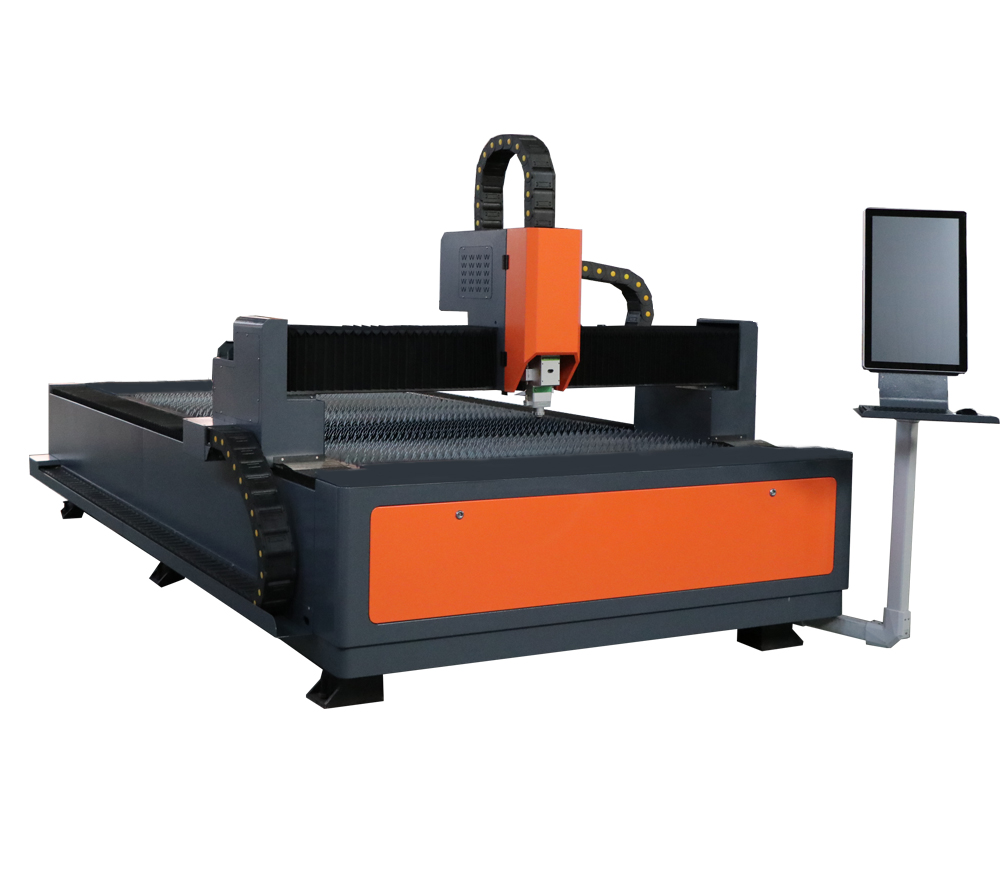

Detailed Images>>>
Gantry double-drive structure, with imported German rack & pinion transmission system, improves the production efficiency.
High-performance cast aluminum guide rail, after finite element analysis, realizes highly accelerated speed circular arc cutting.
Open worktable, simple operation and small space occupation.
Laser cutting machines are mainly used in the sheet metal industry, automotive factories, sheet metal processing plants, and engineering machinery. Due to technological limitations, the steel plates cut by laser cutting are currently relatively thin, but the accuracy of laser cutting is high and the cutting surface is also good. Generally, finished products are used for processing at once. In the future, with the development of technology, the cutting power of laser cutting will be increasing, and it will involve a wider range of industries, including shipbuilding. Laser cutting machines are used in computer cabinets, household appliances, kitchenware, lighting fixtures, electronic and electrical products, hardware products, instruments and meters Precision machinery, steel structures, elevator manufacturing, advertising, art, packaging, environmental protection equipment and other mechanical manufacturing and processing industries.
Sample Show>>>
Packaging & Shipping>>>
Contact us>>>
